Zyklus-MPS

Panel board

/

Upon close inspection, the panel board suffered enough moisture damage to decide to scrap the board and create a new one. It’s not a complex board at all, thankfully. I started by removing all the switches so all the traces could be reviewed. During this process it became obvious that most switches have snuffed it […]

Read more »

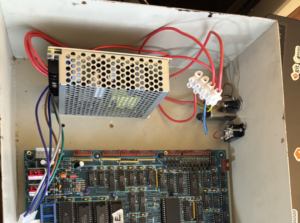

The machine arrived

/

And I got to inspect it up close to see where we’re at. First I took a ton of close up pictures I can use for referencing wiring etc. Next up was to remove the mainboard. This yielded a surprise on the backside. Some kind of rubbery substance was splashed over the backside. I noticed […]

Read more »

Direct

/

Here starts an important and cool restoration project. A lot has been said and written in the past about Vangelis custom “Direct” machine – as a result, this particular device has retained a certain ‘mystique’ on what exactly it did. We’ll probably never fully know for sure as some things like the most recent software […]

Read more »

1.3

A little update

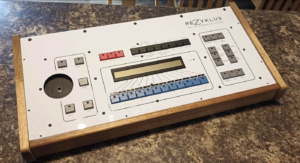

There is a little update, now that I’ve receieved one of the Most Amazing frontpanels created by Paul – and holy cow does it look good! He made one for himself compleet with wooden sides etc, and oh my…. I’m working on the Teensy version as well and mostly actually on the software, which is […]

Read more »

The next phase

/

So now that we have succesfully cloned the Zyklus with that learned a great deal on how it all works from a hardware perspective, it’s time to get deep with the code and try a new hardware platform. Obviously the Z80 is limited, which is why the code included some very handy bank switching to […]

Read more »

Getting the OS builds working

The original Zyklus code was written in Z80 Assmebly, using a Macro assembler from 1985. Thanks to the current popularity of retro computing and the vast resources of the internet, I managed to obtain a copy of the assembler (though not the linker, although I’m fairly certain I have one from an earlier release that […]

Read more »

Running the Zyklus on the MCLZ8

After having new MCLZ8 boards created, this time with the components pre-populated (and thanks Paul for guiding me through the ordering process on that), I now have a working MCLZ8 emulator running. The emulator supports various modes, two of whcih are interesting for us: Mode 0, which means the emulator runs without acceleration, using external […]

Read more »

PaulMC

I want to introduce our user PaulMC a bit. This gentleman has been responsible for a lot of the succeses we’ve had. He took the schematics and created new PCB layouts and basically nailed them in the first try. Then he surprised us with a completely redesigned modern power supply, suitable as a drop-in replacement. […]

Read more »

Trying Z80 Emulator

/

This gentleman (https://microcorelabs.wordpress.com/) has created a Z80 Emulator, based on a Teensy 4.1 module. It is supposed to be a drop-in replacement for the cpu, with which we can use its features to easilly develop new features for the Zyklus. Using this emulator would negate the need to burn new EPROMS, as we can simply […]

Read more »
